As the global transition to renewable energy accelerates, the construction of utility-scale solar farms faces a significant bottleneck: a chronic shortage of skilled labor and the grueling, repetitive nature of site preparation. Built Robotics, a San Francisco-based leader in construction autonomy, addressed this challenge by developing the RPD 35 (Robotic Pile Driver) and RPS 25 (Robotic Pile Stabilizer). By transforming heavy equipment into a fully autonomous robot using their proprietary “Exosystem™” upgrade kit, Built Robotics has successfully demonstrated a solution that increases installation speed, enhances worker safety, and maintains sub-centimeter accuracy in the harshest environments.
The Challenge: The Piling Bottleneck
In utility-scale solar construction, “piling” is the foundational step. Tens of thousands of piles, often 12–16 feet long and weighing up to 200 lbs, must be driven into the ground to support the solar trackers and panels that power utility-scale farms.
Traditionally, this process requires multiple crews and machines to perform four distinct, labor-intensive steps:
1. Surveying: Identifying and marking precise GPS coordinates for each pile with a survey crew.
2. Distribution: Hauling and laying out piles at each location with another team.
3. Driving: Maneuvering a heavy pile driver to hammer the piles into the ground.
4. QC and As-Builts: Manually recording the final position and height of each pile for quality control.
On large sites, this manual process is slow, prone to human error, and exposes workers to dangers such as high noise levels, "struck-by" hazards, and extreme weather. These traditional means and methods cannot keep up with the demand for energy and pace of solar construction.
The Solution: AI-Powered Autonomous Piling System

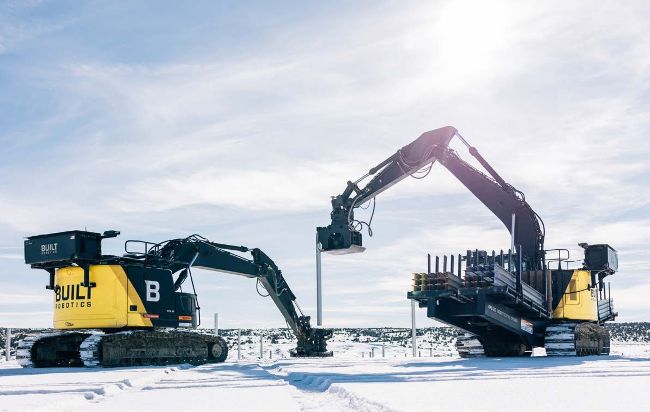

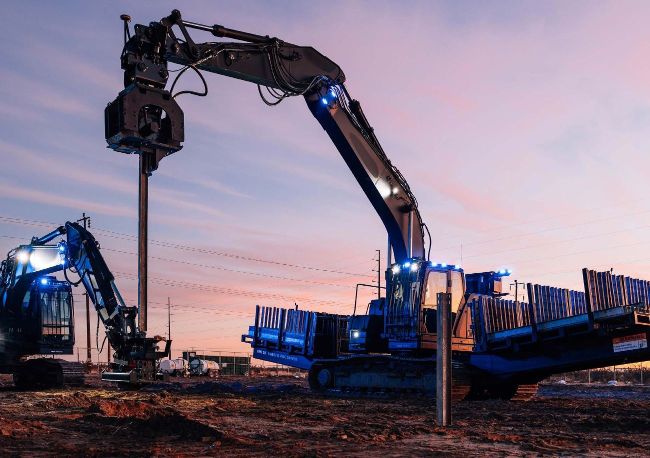

Built Robotics’ solution centers on the Exosystem, an aftermarket upgrade kit that “roboticizes standard heavy equipment. For the piling application, two robots work together to drive pile. The RPD 35 can carry up to 224 piles on its sled system in dozens of configurations and flange widths, and these piles can reach up to 20 feet in length. The RPS 25 stabilized the pile as the RPD 35 drives it into the ground using a vibratory hammer.

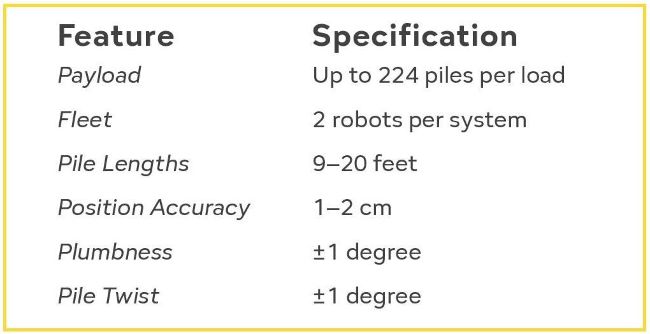

Key Technical Components:
The Brain (Exosystem): A rugged, all-weather enclosure housing a liquid-cooled computer, RTK GPS, and AI-guidance software.
The Sleds: Integrated onboard baskets that carry up to 224 piles, allowing the machine to work for hours without external re-supply and eliminating the need for constant distribution or shakeout.
The Hammer: A specialized vibratory hammer attachment that picks, levels, and drives piles.
8-Layer Safety System: Includes a virtual geofence, safety barriers, Guardian remote monitoring, 360° AI-powered cameras for personnel detection, lights and sounds, and wired and wireless E-stops to ensure safe co-existence with human workers.
Real-World Impact: The Pilbara Solar Innovation Hub (Cloudbreak)
In late 2025, the RPD 35 was selected as the flagship demonstration project for the Pilbara Solar Innovation Hub, a $45 million initiative led by mining giant Fortescue and backed by the Australian Renewable Energy Agency (ARENA). Deployed at the 190MW Cloudbreak Solar Farm in Western Australia, the autonomous system was tasked with a critical trial: installing over 1,200 solar piles in one of the most challenging construction environments on Earth.
1. Overcoming Extreme Environmental Constraints
The Pilbara region is notorious for record-breaking temperatures and rugged, remote terrain that makes traditional labor-intensive construction both dangerous and logistically difficult. By deploying the RPD 35 and RPS 25, Fortescue was able to move human operators out of the direct heat and noise of the piling line. The robot’s ability to work continuously in these conditions proved essential to maintaining the project's timeline while ensuring better safety for workers.
2. Driving Toward “Ultra Low-Cost Solar”
This project is a cornerstone of ARENA’s “30-30-30” vision: achieving 30% module efficiency at an installed cost of 30 cents per watt by 2030.
Speed & Consistency: The trial focused on collapsing the traditional multi-step piling process into a singular autonomous workflow, significantly reducing the "balance of plant" costs.
Precision in Remote Areas: In a remote region, errors are expensive. The RPD 35’s sub-centimeter accuracy eliminated the need for manual re-work, ensuring that the 1,200 piles were perfectly aligned for the next phase of modular solar deployment.
3. Upskilling the Workforce
The deployment transformed the nature of site work. Local crews were trained as Robotic Equipment Operators (REOs), managing the fleet via the Everest cloud platform. This shift not only improved site safety – maintaining Built Robotics’ record of zero robot-related safety incidents – but also provided a blueprint for how to train, upskill, and enable the workforce to focus on critical tasks on the jobsite.
4. Strategic Scalability
The success at Cloudbreak serves as the launchpad for broader solar development work. By proving that autonomous piling can handle the unique soil and climate of Pilbara, Built’s piling robots demonstrate that automation is the primary lever for lowering the costs and improving the efficiency for utility-scale solar construction.
Conclusion
The Built Robotics AI-powered Autonomous Piling System represents a key innovation for the solar industry. By treating the solar farm as an outdoor factory rather than a bespoke construction site, the RPD and RPS address the key bottlenecks to building solar farms while ensuring the structural integrity of the world’s growing renewable infrastructure: energy we need built as safely, quickly, and efficiently as possible. As solar projects move into increasingly remote and inhospitable regions, autonomous piling will become a global industry standard.
