What is behind the tiltrotator?
A tiltrotator is a rotating and tilting adapter that is mounted between the excavator arm and the actual tool – such as a bucket or grapple.
Its special features:
↘ Continuous 360° rotation of the attachment
↘ Tilt up to 50° in both directions
↘ Quick tool changes directly from the driver's cab
Various tiltrotator manufacturers, who implement the tilt function using side cylinders, have significantly shaped the market in recent years and continuously developed the technology.

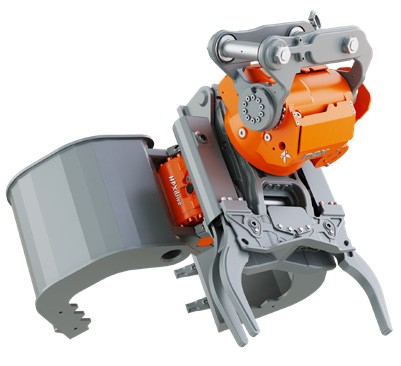

With our NOX tiltrotator, we've already gone one step further, as it no longer has any annoying and vulnerable cylinders. Our cylinderless, flat drive ensures a very low installation height and an extremely narrow installation width. An elliptical piston generates a high and constant tilt torque using single gearing. The robust cast housing is made of a special alloy, ensuring very high strength and a long service life even under the toughest conditions. The strong and robust worm drive has its own lubrication and is therefore very low-maintenance.
Time is money – and this is where the NOX Tiltrotator really saves
Traditionally, an excavator often has to be moved to work at the correct angle. This not only costs time, but also consumes fuel and puts strain on the soil.
With a NOX tiltrotator, these unnecessary movements are a thing of the past. The operator can simply tilt or rotate the bucket and work directly from his position.
Practical example:
When excavating a slope, the operator can precisely tilt the bucket to achieve the desired slope – without reorienting the excavator.
Result: up to 30% time savings per project.
Precision at the highest level
In civil engineering and road construction, precision is key. This is where the NOX tiltrotator excels.
Thanks to its flexible movements, you can:
↘ Cleanly create slopes,
↘ Excavate foundations precisely,
↘ And perform grading work without the need for additional machinery.
In combination with GPS-controlled excavator controls, precision is further increased – sometimes down to within a few centimeters.
Because the NOX tiltrotator has no obstructive cylinders, it can also be used easily in narrow trenches, especially when there are already cables and pipes present, requiring precise work around or between them.
All-rounder on the construction site
A NOX tiltrotator turns the excavator into a true all-rounder.
Thanks to the quick-change system, the operator can switch between various tools, including fully hydraulic ones, in just a few seconds, such as:
↘ Trenching or grading buckets,
↘ Grabs,
↘ Pallet forks, or
↘ Leveling beams.
This not only reduces the number of machines required on the construction site but also saves transport and maintenance costs.
More safety for people and machines
↘ Construction sites pose risks – especially when machines have to be maneuvered frequently or tools are changed manually.
↘ With a NOX tiltrotator, this risk is significantly reduced:
↘ Fewer machine movements = lower risk of collisions.
↘ Tools can be changed directly from the cab, eliminating the need for employees to work in the danger zone.
↘ Better visibility, because the operator can optimally adjust the work area.
Soil-friendly and environmentally friendly
Less moving also means less damage to the ground. This is a significant advantage, especially when working in gardens, parks, or urban areas.
In addition, reduced machine movement reduces fuel consumption, which not only saves costs but also protects the environment.
Is the investment worth it?
At first glance, a NOX Tiltrotator seems like a significant expense. But the investment quickly pays for itself.
↘ Fewer machine hours and lower labor costs
↘ Reduced fuel consumption
↘ Faster project completion
↘ Low maintenance
Example: If a company saves 30 minutes per workday by using a tiltrotator, this adds up to 110 hours per year based on 220 workdays – a time saving that directly translates into several thousand euros.
More comfort for the driver
The ergonomic aspect should not be underestimated. Our NOX tiltrotators are operated via intuitive joystick controls.
This ensures:
• Less strain on hands and arms,
• Less fatigue during long workdays,
• And a noticeably more relaxed working style.
Conclusion: An attachments that sets standards
The NOX tiltrotator has the potential to transform the construction industry for good.
It makes excavators more versatile, efficient, and safer – and offers companies the opportunity to increase their competitiveness.
Whether in road construction, gardening and landscaping, or municipal applications: anyone who invests in a NOX tiltrotator today is investing in a technology of the future.
One more little thing at the end: the new TR025 tiltrotator up to 2.6t operating weight
Unlike its larger siblings, the TR025 tiltrotator has two cylinders, but these do not swivel out, making the tool very narrow. The 360° rotation and two 30° tilt angles provide the necessary mobility and flexibility. Excavators weighing 0.9 t or more can be equipped with a tiltrotator, making them in no way inferior to their larger counterparts.
